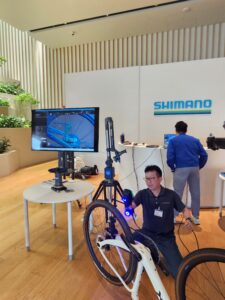

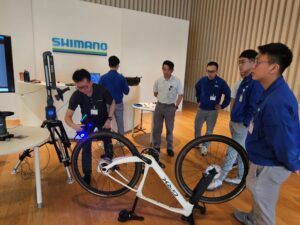

Precision engineering in bicycle component manufacturing demands zero-tolerance quality control. Additionally, complex geometries on cranksets and gear systems present major inspection challenges. Therefore, modern production facilities rely on advanced portable metrology. Integrating 3D Scanning at Shimano Factory floor transforms traditional dimensional audits entirely. Specifically, it delivers rapid laser scanning and non-contact accuracy to verify tight component tolerances instantly.
This portable CMM solution combines multi-axis articulation with ultra-fast optical 3D scanning. Consequently, Shimano quality control engineers inspect complex parts directly on the shop floor without moving them to separate rooms. 3D Scanning at Shimano Factory.
Real-Time CAD Comparison: First, high-resolution lasers capture millions of data points across intricate surfaces. As a result, technicians compare actual component geometry against master 3D CAD models immediately.
Unmatched Shop-Floor Portability: Second, lightweight carbon fiber arms allow quick setup right beside active CNC machinery. Thus, operators conduct rapid reverse engineering and first-article inspections without interrupting production flow.
Furthermore, internal temperature compensation safeguards reading stability against factory floor climate variations. Because of this, every scan yield remains extremely accurate across long production runs.
Faster Reverse Engineering: Importantly, it captures complex surface contours rapidly to accelerate prototype development.
Zero Inspection Bottlenecks: Meanwhile, mobile scanning arms eliminate long queues at fixed coordinate measuring machines.
Streamlined Automated Audits: Similarly, automated inspection software generates detailed color-map deviation reports in seconds.
Superior Defect Detection: Finally, fine laser line probes catch minute surface flaws before final assembly.
| Feature | Traditional Fixed CMM | FARO Creaform Arm 3D Scanner |
| Inspection Location | Dedicated Temperature Lab | Direct Shop Floor & CNC Setup |
| Data Capture Method | Point-by-Point Touch Probe | High-Speed Millions-Point Laser Scan |
| Setup Flexibility | Rigid Fixed Base | Portable Multi-Axis Articulated Arm |
| Best Used For | Basic Prismatic Features | Complex Curved Geometries & Freeforms |
Stop letting slow inspection cycles choke your high-precision manufacturing output. Instead, equip your production line with a cutting-edge FARO Creaform Arm 3D Scanner. Ultimately, this powerful metrology investment boosts factory throughput, eliminates dimensional defects, and guarantees world-class quality assurance standards.
