Efficient Inspection: Indicator SPINDLE LIFTING Lever Guide

Lifting measuring probe tips repeatedly during high-volume inspection creates unnecessary operator fatigue. Grasping the spindle top manually can tilt the indicator, apply uneven side loads, or leave drag marks across delicate workpieces. An Indicator SPINDLE LIFTING Lever resolves this ergonomic bottleneck by offering a simple finger-operated lever for quick probe retraction.

This guide explores how adding a lifting lever accessory boosts shop productivity and protects part surfaces.

What Is an Indicator SPINDLE LIFTING Lever?

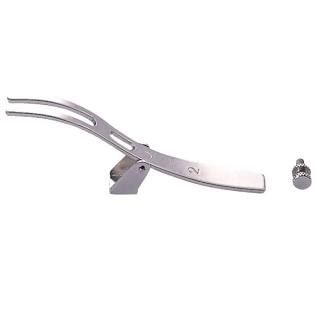

An Indicator SPINDLE LIFTING Lever is a rigid, spring-assisted mechanical arm attached directly to a dial or digital indicator stem.

Positioned right beside the gauge housing, this lever engages a collar on the spindle shaft. Inspectors press the ergonomic finger pad down to lift the contact point smoothly upward without disturbing the main indicator mount.

Key Operational Advantages

Integrating a spindle lifting lever delivers clear technical benefits for quality control teams:

• One-Handed Operation: Retracts the spindle instantly with a simple thumb press, keeping your other hand free to swap components.

• Axial Alignment Protection: Prevents side-thrust bending forces that damage internal spindle bearings during manual lifting.

• Part Surface Shielding: Lifts contact points clear before part insertion, preventing scratch marks on ground surfaces.

• Fast Batch Inspection: Speeds up comparative thickness checks during high-volume production runs.

Common Workshop Applications

Machinists and quality control technicians rely on spindle lifting levers for daily benchtop tasks:

1. High-Volume Parts Sorting: Lift the contact point rapidly to position small stamped or turned parts onto measuring anvils.

2. Comparator Stand Checks: Perform rapid height inspections on granite surface plates without disturbing zero settings.

3. Soft Material Inspection: Raise the probe cleanly to prevent dragging across soft copper, plastic, or rubber components.

4. Toolroom Gauging: Verify workpiece step heights on multi-stage comparative inspection fixtures efficiently.

How to Install in 4 Easy Steps

Follow these simple steps to mount and operate your lifting lever:

1. Clean the Stem: Wipe the lower indicator stem and spindle housing free of oil.

2. Mount the Bracket: Slide the lever clamp ring onto the indicator stem collar.

3. Tighten Screw: Secure the mounting screw firmly, ensuring the arm catches the spindle pin properly.

4. Verify Smooth Action: Press the lever pad to confirm quick, unrestricted spindle retraction.

Final Thoughts

The Indicator SPINDLE LIFTING Lever transforms repetitive manual gauge lifting into a smooth, effortless routine. By protecting spindle alignment and accelerating part swaps, this affordable metrology accessory maintains strict shop standards.
