Effortless Inspection: Indicator SPINDLE LIFTING CABLE Guide

Lifting indicator spindles manually during rapid inspection routines can disturb delicate measuring setups. Touching the gauge spindle directly risks transferring body heat, scratching ground workpiece surfaces, or shifting the magnetic base. An Indicator SPINDLE LIFTING CABLE resolves this operational hurdle by enabling smooth, remote spindle retraction via a flexible release wire.

This guide explores how adding a lifting cable accessory elevates inspection accuracy and speed.

What Is an Indicator SPINDLE LIFTING CABLE?

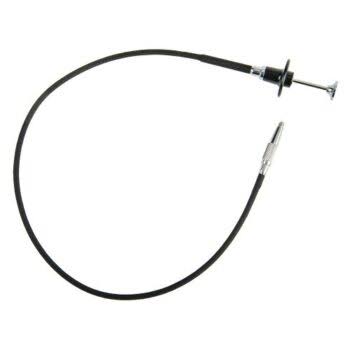

An Indicator SPINDLE LIFTING CABLE is a flexible, plunger-actuated cable release accessory for dial and digital indicators.

Designed to screw directly into the top stem of the measuring spindle, this tool features an internal wire mechanism. Quality inspectors press a remote push-button plunger to raise the indicator contact point smoothly without touching the gauge body directly.

Key Operational Advantages

Integrating a spindle release cable delivers clear practical benefits for quality assurance technicians:

• Vibration-Free Actuation: Retracts the spindle remotely, preventing hand vibration from shifting sensitive indicator setups.

• Workpiece Protection: Prevents contact points from dragging across and scratching highly polished master components.

• Faster Repeat Checks: Speeds up high-volume part insertion and removal cycles during batch inspection runs.

• Smooth Flexible Reach: Flexible sheath allows operators to actuate indicators placed inside tight machine enclosures effortlessly.

Common Workshop Applications

Machinists and quality control technicians rely on spindle lifting cables for critical daily tasks:

1. High-Volume Production Checks: Retract contact points rapidly to insert target parts into inspection fixtures.

2. Surface Plate Metrology: Protect delicate master gauge blocks and surface finishes from probe drag marks.

3. Enclosed Fixture Inspection: Actuate indicators mounted in cramped positions inside automated measuring stations.

4. Comparative Quality Audits: Perform rapid comparative height checks without disturbing magnetic base positions.

How to Install in 4 Easy Steps

Follow these simple steps to install and operate your lifting cable:

1. Remove Top Cap: Unscrew the protective dust cap on the top of the indicator spindle.

2. Thread the Cable: Screw the cable adapter tip firmly into the threaded spindle top hole.

3. Check Wire Travel: Press the remote plunger button to ensure full, smooth spindle retraction.

4. Begin Inspection: Position target parts, release the cable plunger gently, and record your reading.

Final Thoughts

The Indicator SPINDLE LIFTING CABLE turns delicate gauge actuation into a smooth, error-free routine. By eliminating physical touch during inspection, this simple metrology accessory protects part finishes and maintains strict shop standards.
